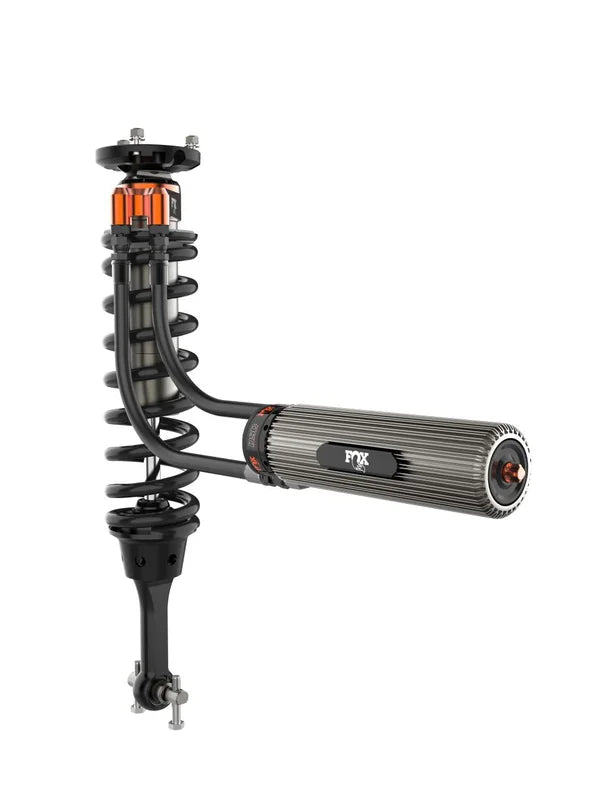

Description The Fox Factory Race Series 3.5 Remote Reservoir Shocks (F&R) with 1-2.5″ lift. FOX Factory Race Series 3.0 Internal Bypass shocks for the 14th generation Ford F-150 deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing.

Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. FrontInstallation Guide Rear Installation Guide Shock Technical Specifications 3.0″ impact extruded and CNC machined 6061-T6 hard-anodized aluminum body Patented, internal bypass design Application-specific springs 7/8″ stainless steel shafts Vehicle-specific tuning maximizes performance Redundant sealing pack system: main seal, wiper seal, scraper seal Recirculating Reservoir bridge keep shock temperatures cool.

Finned reservoir, with DSC adjuster Rear shaft guards protect against roost Front Shock Specs Adjuster Type:DSC – Dual Speed Compression Extended Length:22.5″ Compressed Length: 17.25″ Travel: 5.24″ Top Mount Style: OEM Bottom Mount Style: Bar Pin Fitment notes: 1″ lift on Tremor Rear Shock Specs Adjuster Type:DSC – Dual Speed Compression & Rebound Extended:28.300 Compressed:17.580 Travel:10.720 Top Mount:Eyelet Bottom Mount:Eyelet Fitment notes: Shock length too short for Tremor.
